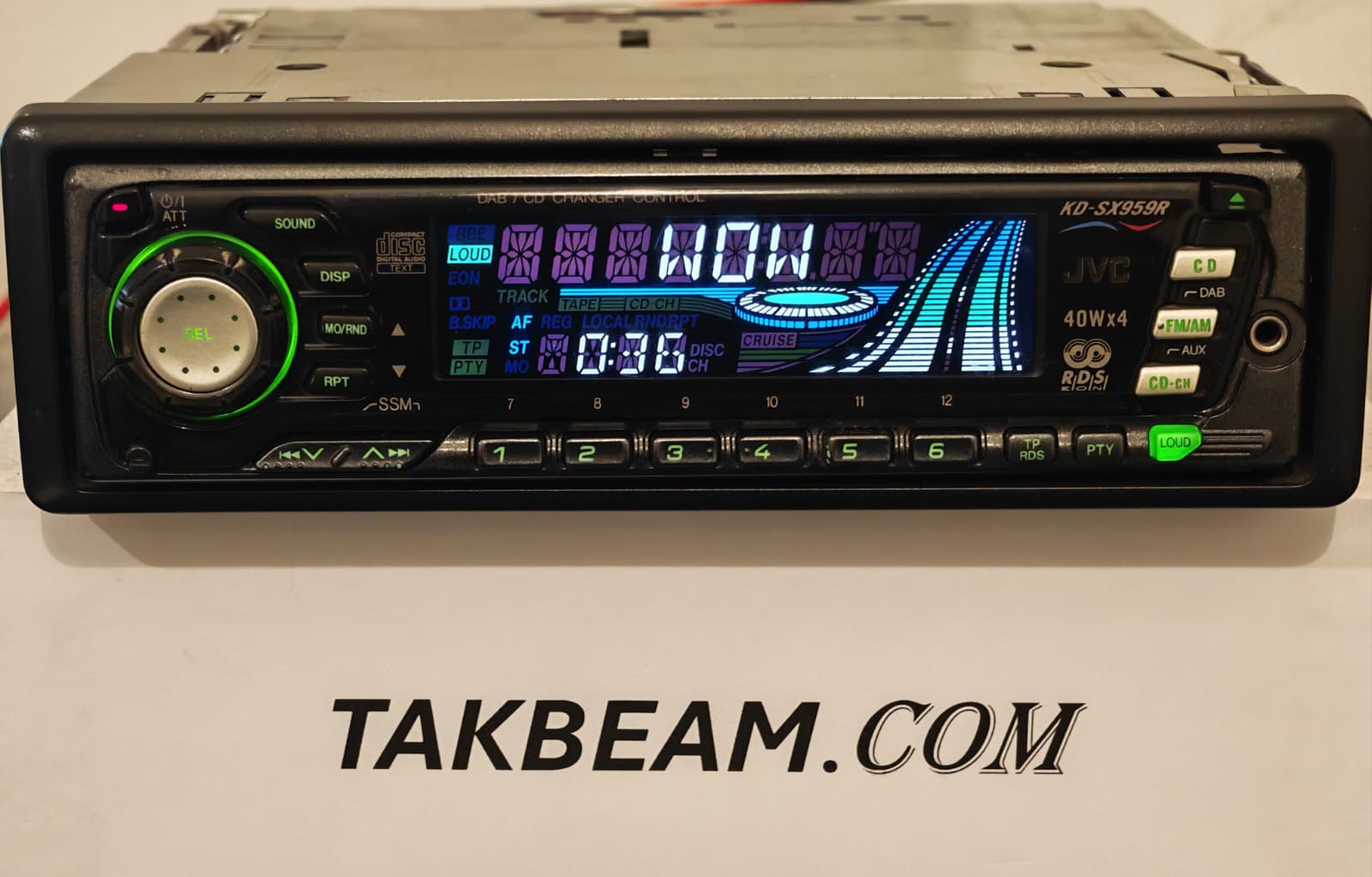

Test – Jvc Kd SX959R Autoradio CD Headunit from 1998
Modello Top di gamma del 1998.
4 Pre-Out (Front + Rear)
40Wx4
SPECIFICATIONS
AUDIO AMPLIFIER SECTION
Maximum Power Output:
- Front: 40 watts per channel
- Rear: 40 watts per channel
Continuous Power Output (RMS):
- Front: 16 watts per channel into 4 Ω, 40 to 20,000 Hz at no more than 0.8% total harmonic distortion.
- Rear: 16 watts per channel into 4 Ω, 40 to 20,000 Hz at no more than 0.8% total harmonic distortion.
Load Impedance: 4 Ω (4 to 8 Ω allowance)
Tone Control Range:
- Bass: ±10 dB at 100 Hz
- Treble: ±10 dB at 10 kHz
Frequency Response: 40 to 20,000 Hz
Signal-to-Noise Ratio: 70 dB
Line-Out Level/Impedance: 2.0 V/20 kΩ load (full scale)
Output Impedance: 1 kΩ
Input: AUX (3.5 mm dia. stereo mini jack)
TUNER SECTION
Frequency Range:
- FM: 87.5 to 108.0 MHz
- AM: (MW) 522 to 1,620 kHz
- (LW) 144 to 279 kHz
[FM Tuner]
- Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω)
- 50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω)
- Alternate Channel Selectivity (400 kHz): 65 dB
- Frequency Response: 40 to 15,000 Hz
- Stereo Separation: 30 dB
- Capture Ratio: 1.5 dB
[MW Tuner]
- Sensitivity: 20 μν
- Selectivity: 35 dB
[LW Tuner]
- Sensitivity: 50 μν
CD PLAYER SECTION
Type: Compact disc player
Signal Detection System: Non-contact optical pickup (semiconductor laser)
Number of channels: 2 channels (stereo)
Frequency Response: 5 to 20,000 Hz
Dynamic Range: 96 dB
Signal-to-Noise Ratio: 98 dB
Wow and Flutter: Less than measurable limit
GENERAL
Power Requirement:
- Operating Voltage: DC 14.4 volts (11 to 16 volts allowance)
Grounding System: Negative ground
Allowable Operating Temperature: 0°C to +40°C
Dimensions (W x H x D):
- Installation Size: 182 x 52 x 150 mm
- Panel Size: 188 x 58 x 11 mm
Mass: 1.4 kg (excluding accessories)
